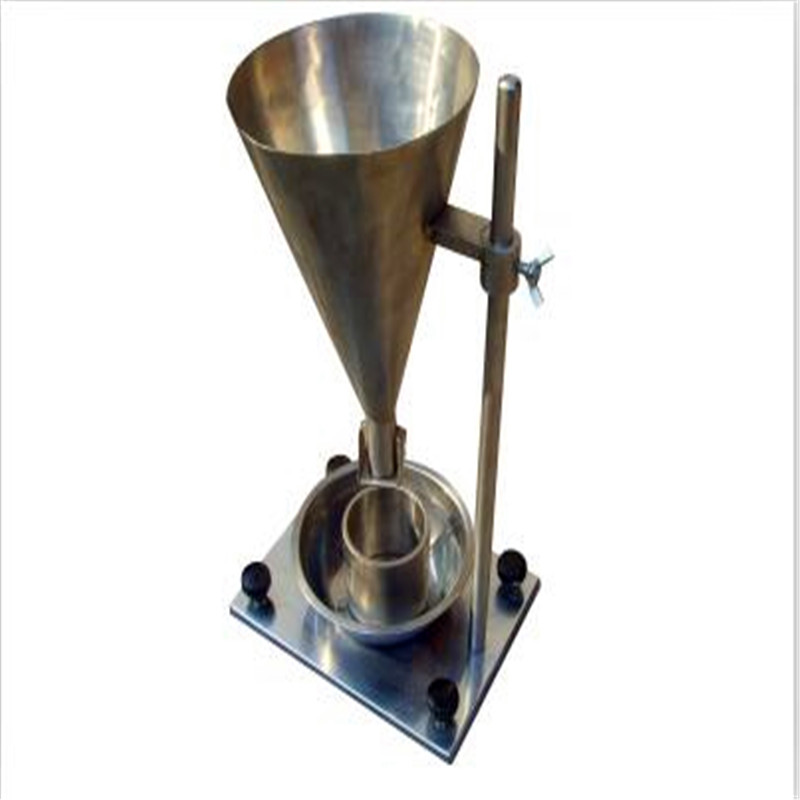

FT-106普通磨料堆积密度测定仪
发布时间： 2020-10-27 15:15:22 点击： 2483
FT-106普通磨料堆积密度测定仪
FT-106 Common abrasive bulk density tester
一． 参照标准standard：
ISO9136：1989《粗磨粒 堆积密度的测定》和行业标准JB／T7984.2-1999《普通磨料 粗磨粒堆积密度的测定》的相关要求；GB/T20316.1-2009堆积密度测定仪要求；适用于检测制造固结磨具和涂附磨具的粗颗粒普通磨料的堆积密度
According to the international standard ISO9136:1989 "the determination of coarse grinding grain bulk density” and industry standards JB/T7984.2-1999 the relevant technical requirements of ordinary abrasive coarse grinding grain of bulk density determination, at the same time meet the requirements of GB/T20316.1-2009 bulk density meter;It is suitable to test the packing density of coarse grain grinding materials, which can be used in the manufacture of consolidation grinding tools and coated abrasive tools.
二．参数资料Technical Parameters
1.1漏斗材质：不锈钢；
Funnel material: stainless steel.
1.2漏斗尺寸：高度240mm；顶部直径160mm；出口直径：(20±0.5)mm；
漏斗底部与测量筒上口的距离：（76±1）mm 测量筒尺寸：内径64mm； 净高度62mm 测量筒容积：.(200±0.5) cm3 测量误差：≤±0.02g/cm3
Funnel dimensions: height 240mm, top
diameter 160mm, outlet diameter: (20±0.5)mm, the distance between the bottom of the funnel and the top of
the measuring cylinder: （76±1）mm, measuring cylinder dimensions:
inner diameter 64mm, net height: 62mm, measuring cylinder volume: (200±0.5) cm3, measurement error：≤±0.02g/cm3.
2.1测量误差：≤±0.02g／cm3。Measurement
error：≤±0.02g/cm3.
2.2测量筒容积：200±0.5cm3。Measuring cylinder volume: (200±0.5) cm3.
2.3外形尺寸：230mm（长）×250mm（宽）×425mm（高）
Dimensions: 230mm (L) * 250mm (W) * 425mm (H)
FT-106普通磨料堆积密度测定仪视频文件链接：
https://v.youku.com/v_show/id_XMTMyMTM1MTM2MA==.html?spm=a2hzp.8253869.0.0
