FT-109A压裂支撑剂体积密度测试仪
发布时间： 2024-04-29 15:30:13 点击： 2580

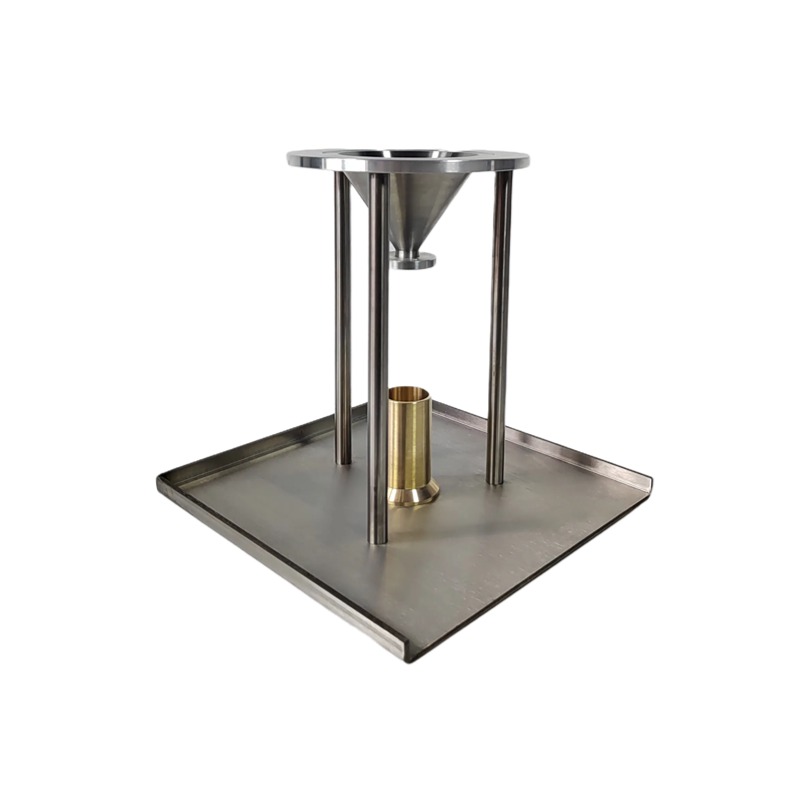

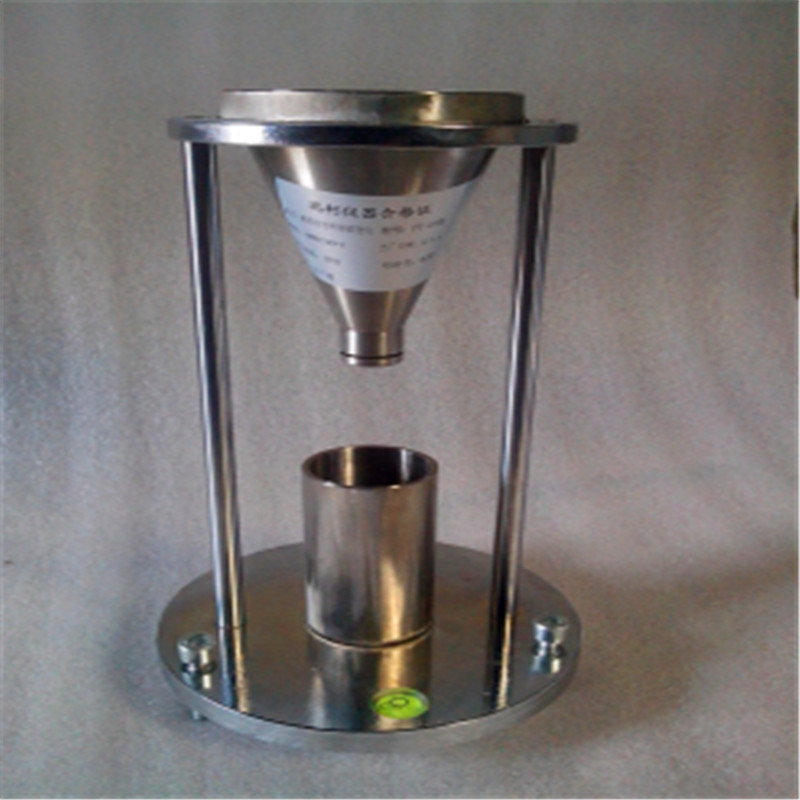

FT-109A压裂支撑剂体积密度测试仪
FT-109AFracturing proppant volume density tester
一.参照标准standard：
参照标准API RP60、Q/SY 124-2007和SY/T 5108-2006压裂支撑剂性能指标及测试方法及QSY 125-2007压裂支撑剂性能制表及评价测试方法制作
Meet the standard: according to the latest domestic standard API RP60、Q/SY 124-2007 and SY/T 5108-2006 fracturing proppant performance index and test method recommended and QSY 125-2007 fracturing proppant performance TAB and evaluation test method
体积密度：单位堆积体积的支撑剂质量称为支撑剂体积密度；单位堆积体积的陶粒质量称为陶粒的体积密度，是包含陶粒本身、开口气孔和闭口气孔三部分的平均密度。单位是g/mL
Volume density: The proppant mass of the unit's volume is called the proppant volume density;The mass of the ceramsite in the unit’s volume is called the volume density of the ceramsite, the average density of three parts of the ceramic grain itself, the open pore and the closed stomata.The unit is g/mL
二．参数要求：Technical Parameters
漏斗上口到桶状容器底板仪器台面总高304.8mm；支撑剂下落点起到一仪器台面的距离215.9mm；
The height from the upper opening of funnel to situla floor instrument table is 304.8mm, the distance from the proppant drop point to the instrument table is215.9mm.
2.漏斗高76.2mm；漏斗口高12.7mm；桶状容器高76.2mm；仪器台面宽度=30.48mm。
胶皮堵球直径=30.48mm；
Funnel height 76.2mm, funnel opening height 12.7mm, situla height 76.2mm, instrument table width 30.48mm.
Rubber plugging ball diameter30.48mm.
不锈钢支架架直径=4.8mm；桶状容积直径38.1mm；
Stainless steel bracket diameter 4.8mm, situla diameter38.1mm.
漏斗顶部外径=139.7mm；漏斗顶部内径=114.3mm；
Funnel top outer diameter 139.7mm, funnel top inner diameter114.3mm.
漏斗和量杯为不锈钢材质.
The funnel and the measuring cup are made of stainless steel.
配置：毛刷；钢尺；水准仪；说明书；合格证；保修卡；
Equipment: brush, steel, level, manual, certificate, warranty card.
